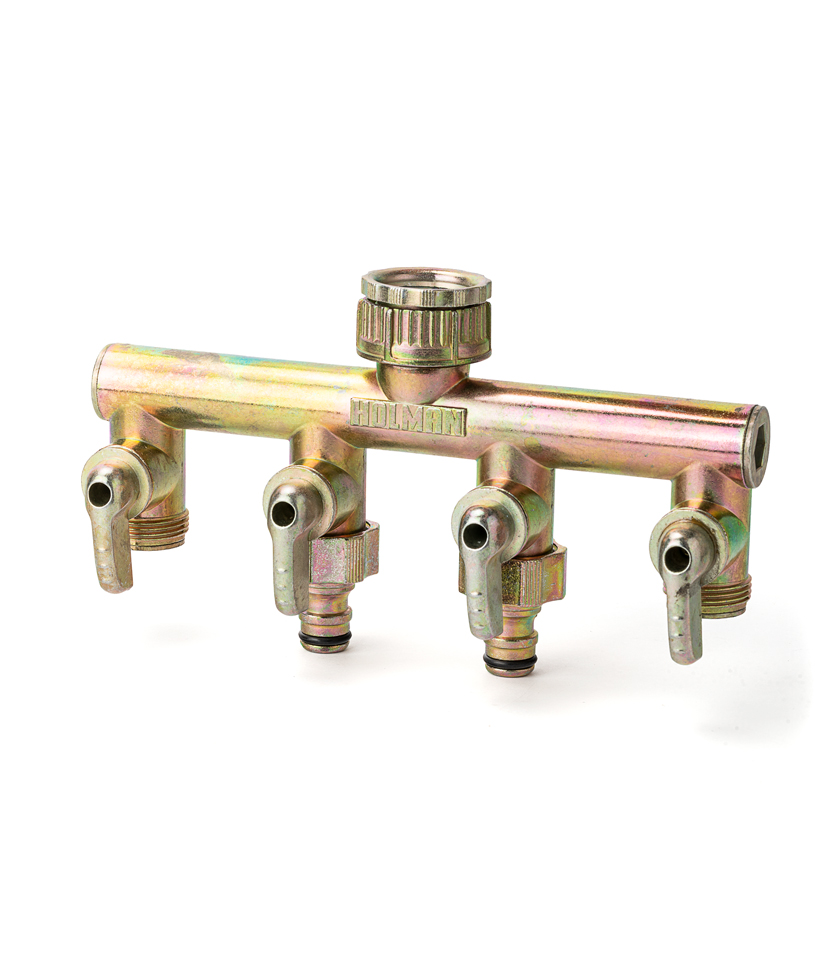

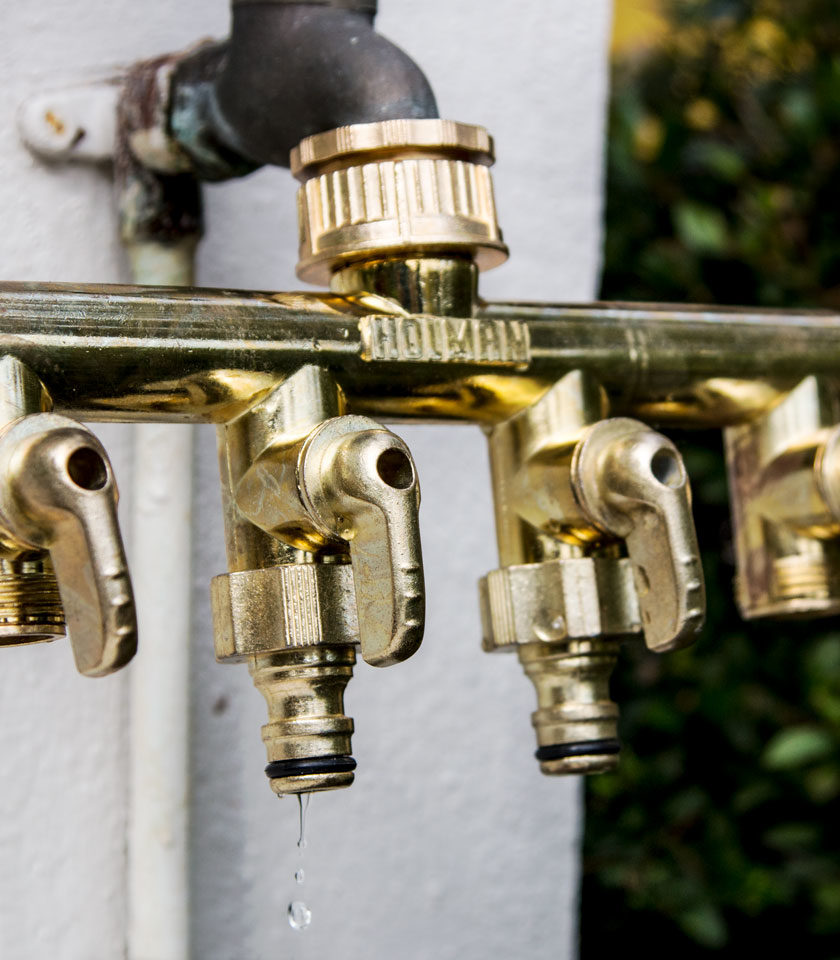

4 Way Metal Tap Outlet
Turns one tap into FOUR! The Holman 4 outlet metal manifold converts one garden tap into four independent manually operated outlets. It’s ideally suited for connecting to garden hoses, dripping/porous hoses, poly pipe or inline drip systems. Made from high quality die cast metal, this manifold is great for any home garden. All 4 outlets come with a male threaded end to allow you to attach onto a variety of fittings: Plastic, brass, barbed or click on style.
This manifold includes two 12mm snap on adaptors. Each outlet can be operated independently via the extra large shut-off levers which control the water flow from ON to OFF. Operating a Holman 4 outlet manifold is simple! Use either outlet individually or multiple outlets at once! This gives you great flexibility. The manifold can be fitted to either 3/4″ or 1″ tap using the adaptor bush. The large diameter inlet nut is easy to grip & extra tabs which help tighten against the tap outlet to ensure no leaks. For the best care of your manifold, avoid leaving it under pressure for extended periods. Ensure your garden tap is turned OFF when watering is not required.
Inlet: 1″ BSP female thread. Included is a 3/4″ BSP to 1″ BSP Adaptor bush to connect to any garden tap. (Suits 20-25mm taps)
Outlets: 4 x 3/4″ BSP male thread.
Maximum Pressure Rating 1000kPa: All warranties are void if used in high pressure applications.
WARNING – Don’t use in freezing conditions. Before winter or snow, remove your manifold from the tap to avoid the unit from freezing. If the unit is used during winter, open the valve to empty any excess water after it’s use.
