Additional information
| Weight | N/A |
|---|---|
| Fitting Size | 50x40mm, 65x40mm, 65x50mm, 100x40mm, 100x50mm, 100x65mm, 150x100mm, 225x100mm, 225x150mm, 300x225mm |
DWV PVC INPIPE REDUCING BUSH
DWVF0434 | DWVF0436 | DWVF0438 | DWVF0428 | DWVF0430 | DWVF0432
RBUSHSEW150X100IN | RBUSHSEW225X100IN | RBUSHSEW225X150IN | RBUSHSEW300X225IN
The Holman in pipe reducing bush is for sewer & vent use. Connect pipe with solvent cement. Complies with AS/NZS1260.
Reviews
| Code | Description | Bag | Box | Pallet | |
|---|---|---|---|---|---|
 | DWVF0434 | 50mm x 40mm | 10 | 250 | 12000 |
 | DWVF0436 | 65mm x 40mm | 10 | 150 | 7200 |
 | DWVF0438 | 65mm x 50mm | 10 | 130 | 6240 |
 | DWVF0428 | 100mm x 40mm | 10 | 60 | 1620 |
 | DWVF0430 | 100mm x 50mm | 10 | 60 | 1620 |
 | DWVF0432 | 100mm x 65mm | 10 | 80 | 2160 |
 | RBUSHSEW150X100IN | 150mm x 100mm (F) | - | - | - |
| RBUSHSEW150X100IN | 225mm x 100mm (F) | - | - | - |
| RBUSHSEW225X150IN | 225mm x 150mm (F) | - | - | - |
| RBUSHSEW300X225IN | 300mm x 225mm (F) | - | - | - |
Tech Sheet 50mm
Tech Specs
- Model Name: DWV PVC Pipe Reducer M&F 50x40mm
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|

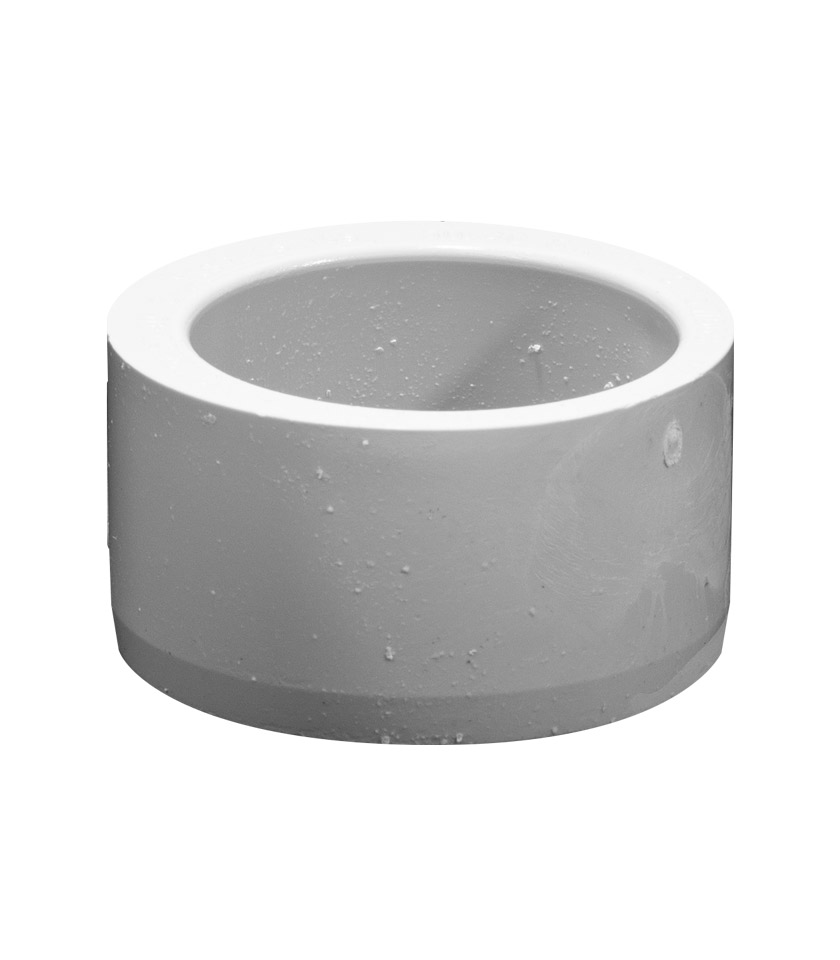

| DWVF0434 | 50x40mm M&F | – | 50x40mm | – | 0.03kg |
Tech Sheet 65mm
Tech Specs
- Model Name: DWV PVC Pipe Reducer M&F 65x40mm
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|

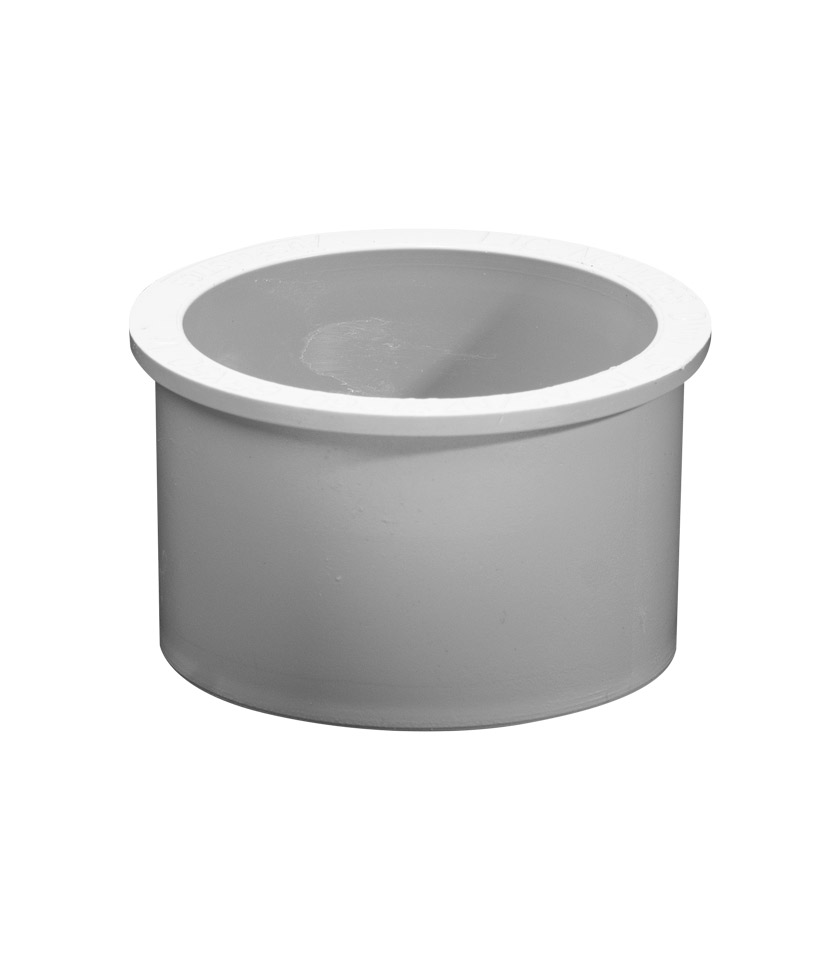

| DWVF0436 | 65x40mm M&F | – | 65x40mm | – | 0.04kg |

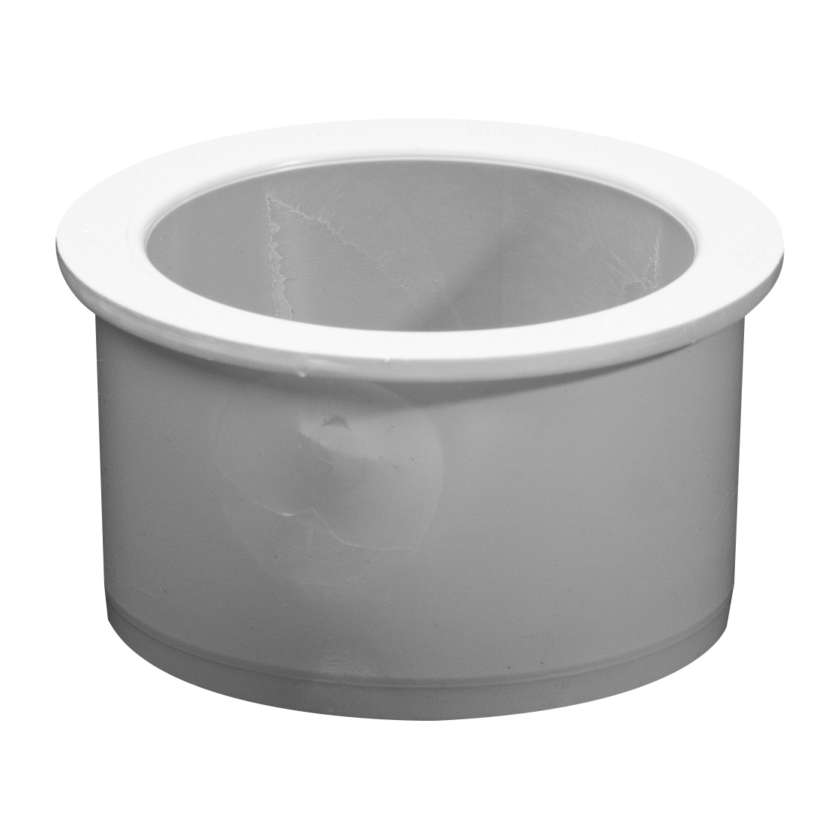

| DWVF0438 | 65x50mm M&F | – | 65x50mm | – | 0.03kg |
Tech Sheet 100mm
Tech Specs
- Model Name: DWV PVC Pipe Reducer M&F 100x40mm
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|

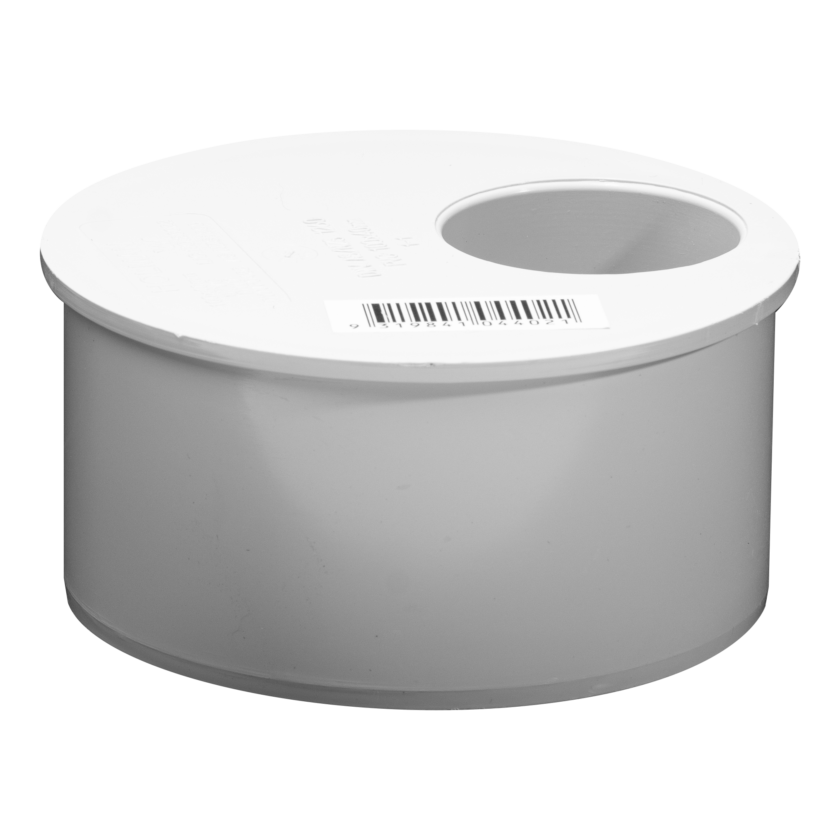

| DWVF0428 | 100x40mm M&F | – | 100x40mm | – | 0.15kg |

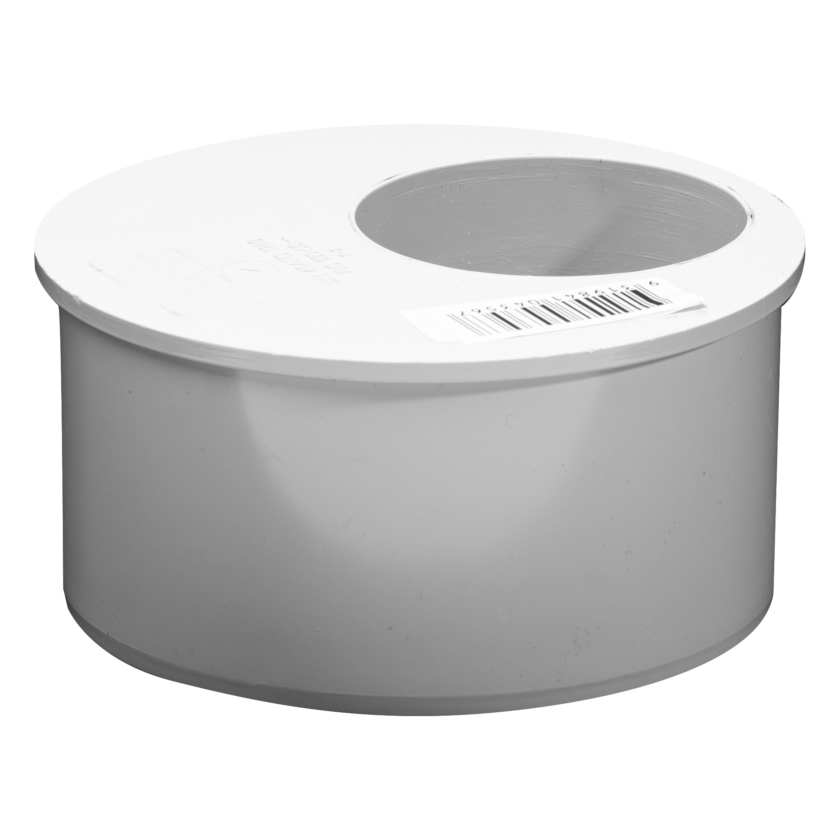

| DWVF0430 | 100x50mm M&F | – | 100x50mm | – | 0.13kg |

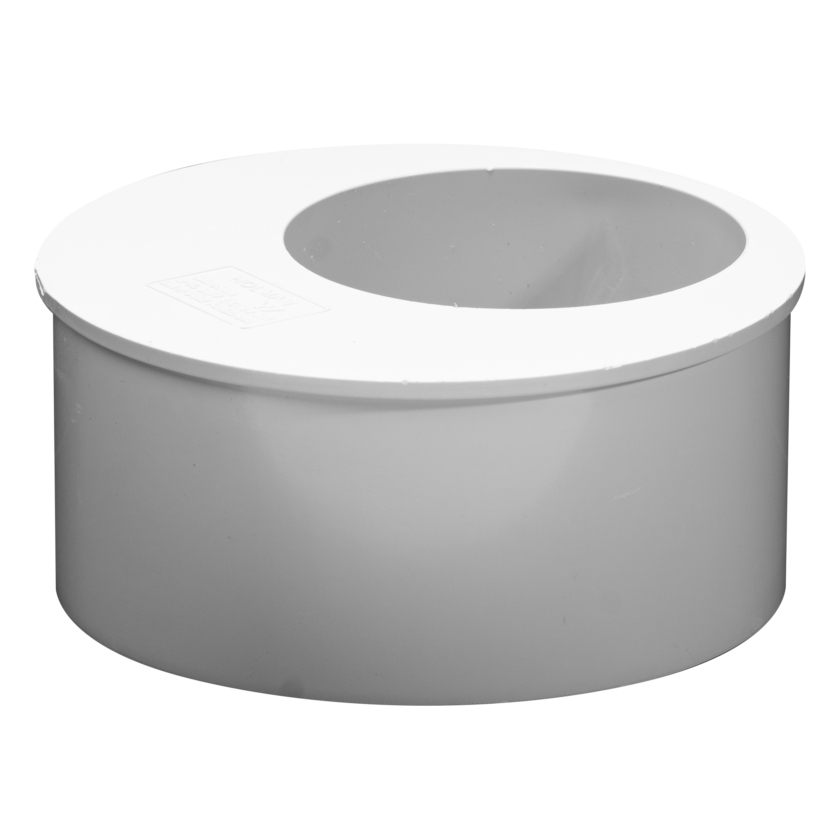

| DWVF0432 | 100x65mm M&F | – | 100x65mm | – | 0.2kg |
Tech Sheet 150mm
Tech Specs
- Model Name: DWV Fabfit Inpipe Reducing Bush 150x100mm (F)
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| RBUSHSEW150X100IN | 150x100mm (F) | – | 150x100mm | – | – |
Tech Sheet 225mm
Tech Specs
- Model Name: DWV Fabfit Inpipe Reducing Bush 225x100mm (F)
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| RBUSHSEW225X100IN | 225x100mm (F) | – | 225x100mm | – | – |
| RBUSHSEW225X150IN | 225x150mm (F) | – | 225x150mm | – | – |
Tech Sheet 300mm
Tech Specs
- Model Name: DWV Fabfit Inpipe Reducing Bush 300x225mm (F)
- Colour: Grey
- Connection: Yes
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1260
| Code | Description | Angle | Size | Dimensions | Weight |
|---|---|---|---|---|---|
| RBUSHSEW300X225IN | 300x225mm (F) | – | 300x225mm | – | – |
