Additional information
| Weight | N/A |
|---|---|
| Fitting Size | 15mm x 1/2", 20mm x 1/2", 20mm x 3/4", 25mm x 1/2", 25mm x 3/4", 25mm x 1", 32mm x 1/2", 40mm x 1/2", 40mm x 3/4", 40mm x 1", 50mm x 1/2", 50mm x 3/4", 50mm x 1" |
PVC Pressure Faucet Tee
Faucet Tee (CAT No.21)
PVT1515F | PVT2015F | PVT2020F | PVT2515F | PVT2520F | PVT2525F | PVT3215F | PVT4015F | PVT4020F | PVT4025F | PVT5015F | PVT5020F | PVT5025F
A PVC Pressure Faucet Tee joins the same size pressure pipe with a female BSP thread intersecting to form a T junction. Use to attach sprinklers or valves into an irrigation system. Watermark Approved Fittings, manufactured to AS/NZS 1477 Standard.
$0.00
Reviews
| Code | Description | Bag | Box | Pallet | |
|---|---|---|---|---|---|
 | PVT1515F | 15mm x 1/2" | 25 | 450 | 10800 |
 | PVT2015F | 20mm x 1/2" | 25 | 400 | 9600 |
 | PVT2020F | 20mm x 3/4" | 25 | 400 | 9600 |
 | PVT2515F | 25mm x 1/2" | 25 | 200 | 4800 |
 | PVT2520F | 25mm x 3/4" | 25 | 200 | 4800 |
 | PVT2525F | 25mm x 1" | 25 | 200 | 4800 |
 | PVT3215F | 32mm x 1/2" | 10 | 90 | 2160 |
 | PVT4015F | 40mm x 1/2" | 10 | 80 | 1920 |
| PVT4020F | 40mm x 3/4" | 10 | 80 | 1920 |
| PVT4025F | 40mm x 1" | 10 | 80 | 1920 |
| PVT5015F | 50mm x 1/2" | 6 | 60 | 1440 |
| PVT5020F | 50mm x 3/4" | 6 | 60 | 1440 |
| PVT5025F | 50mm x 1" | 6 | 60 | 1440 |
Tech Sheet 15mm
Tech Specs
- Model Name: PVC Pressure Faucet Tee 15mm x 1/2″
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|

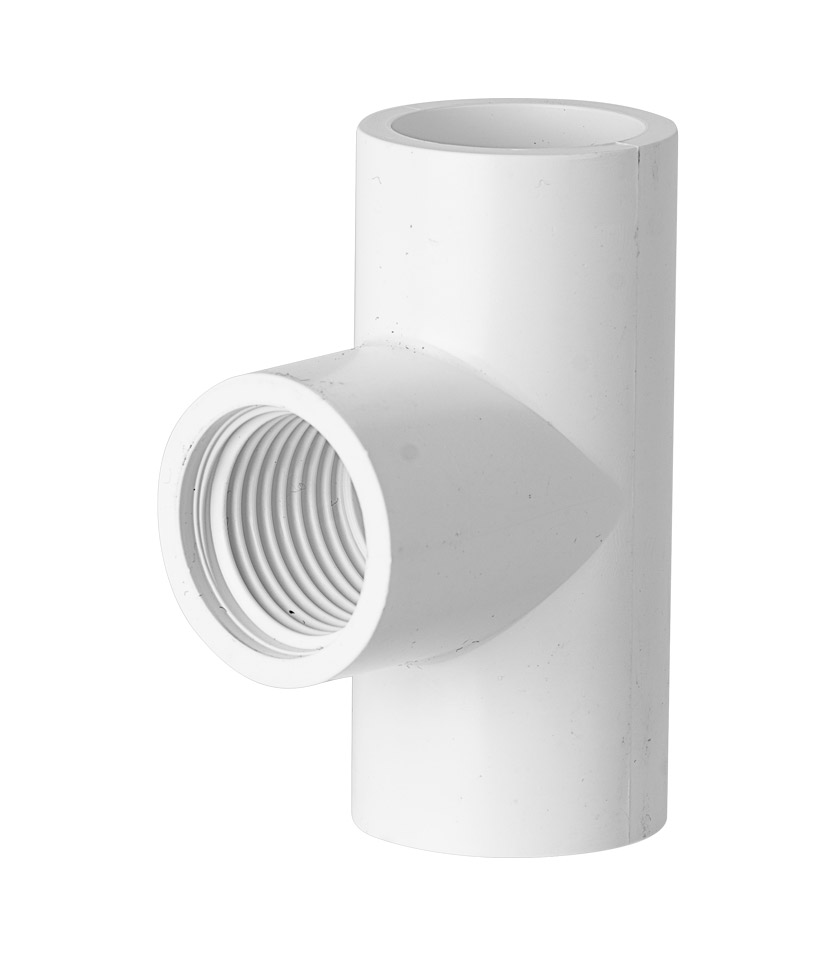

| PVT1515F | 15mm x 1/2″ | – | 15mm | 0.03kg |
Tech Sheet 20mm
Tech Specs
- Model Name: PVC Pressure Faucet Tee 20mm x 1/2″
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|

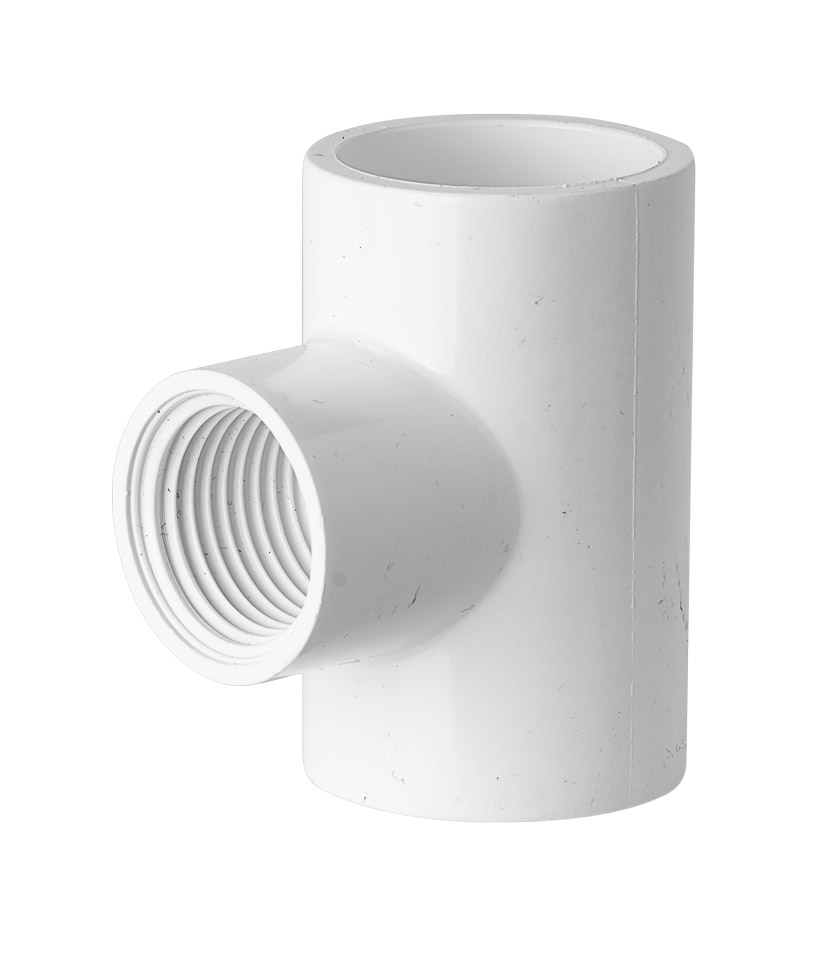

| PVT2015F | 20mm x 1/2″ | – | 20mm | 0.04kg |

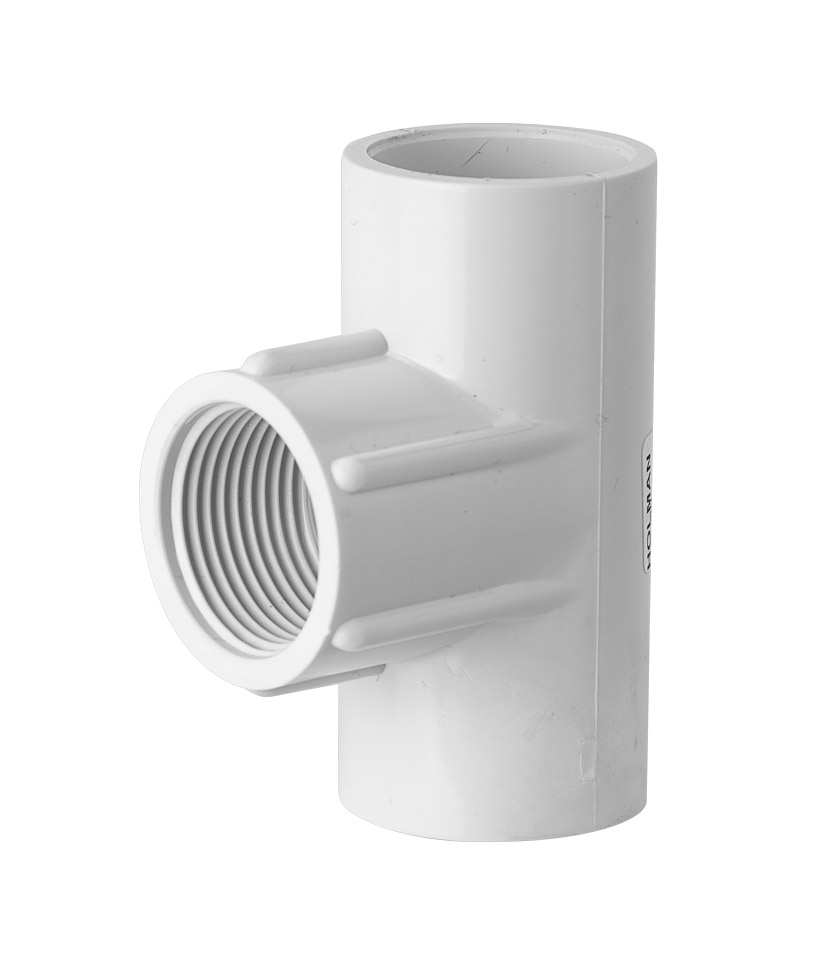

| PVT2020F | 20mm x 3/4″ | – | 20mm | 0.05kg |
Tech Sheet 25mm
Tech Specs
- Model Name: PVC Pressure Faucet Tee 25mm x 1/2″
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|

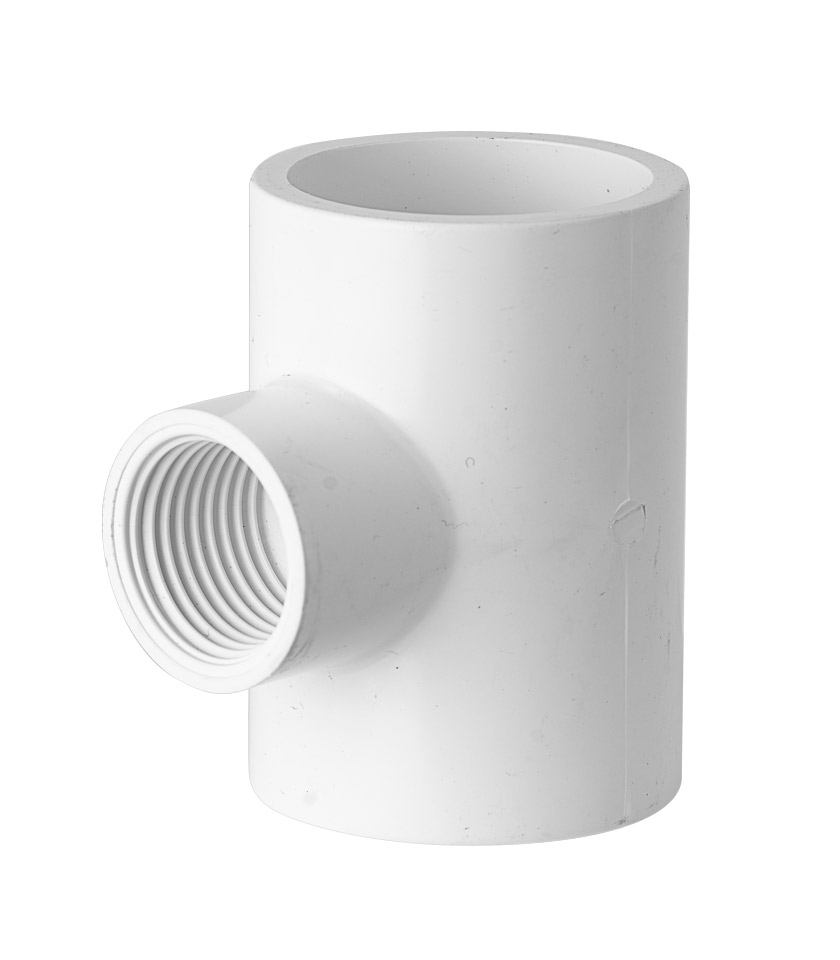

| PVT2515F | 25mm x 1/2″ | – | 25mm | 0.05kg |

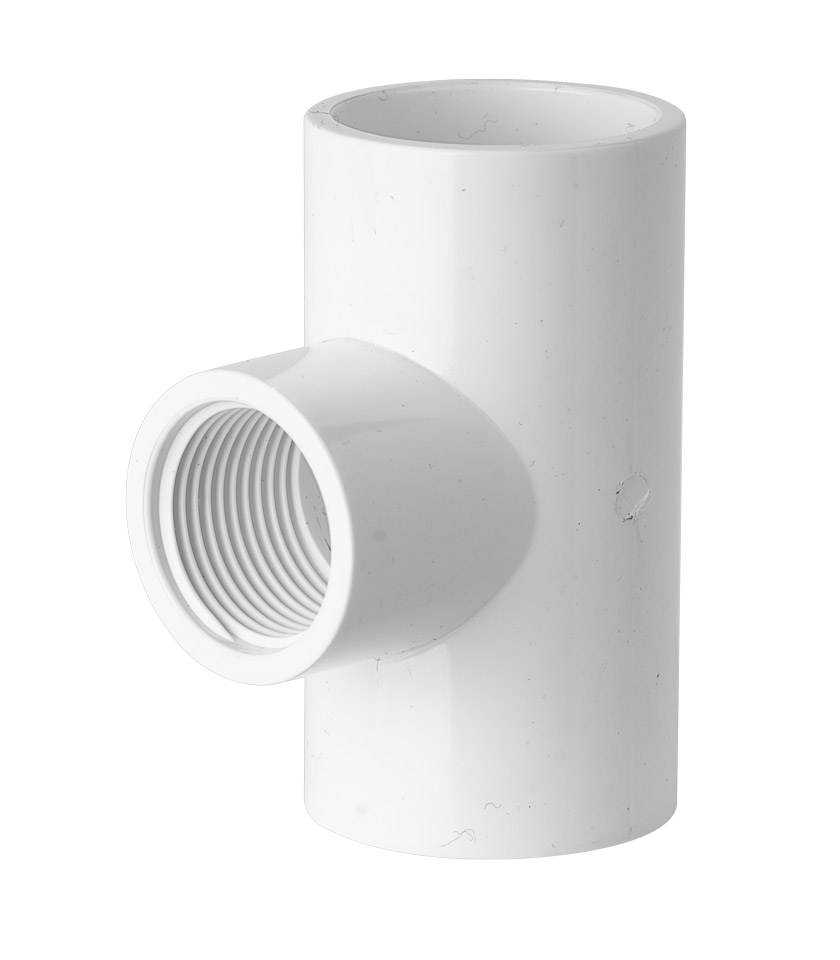

| PVT2520F | 25mm x 3/4″ | – | 25mm | 0.06kg |

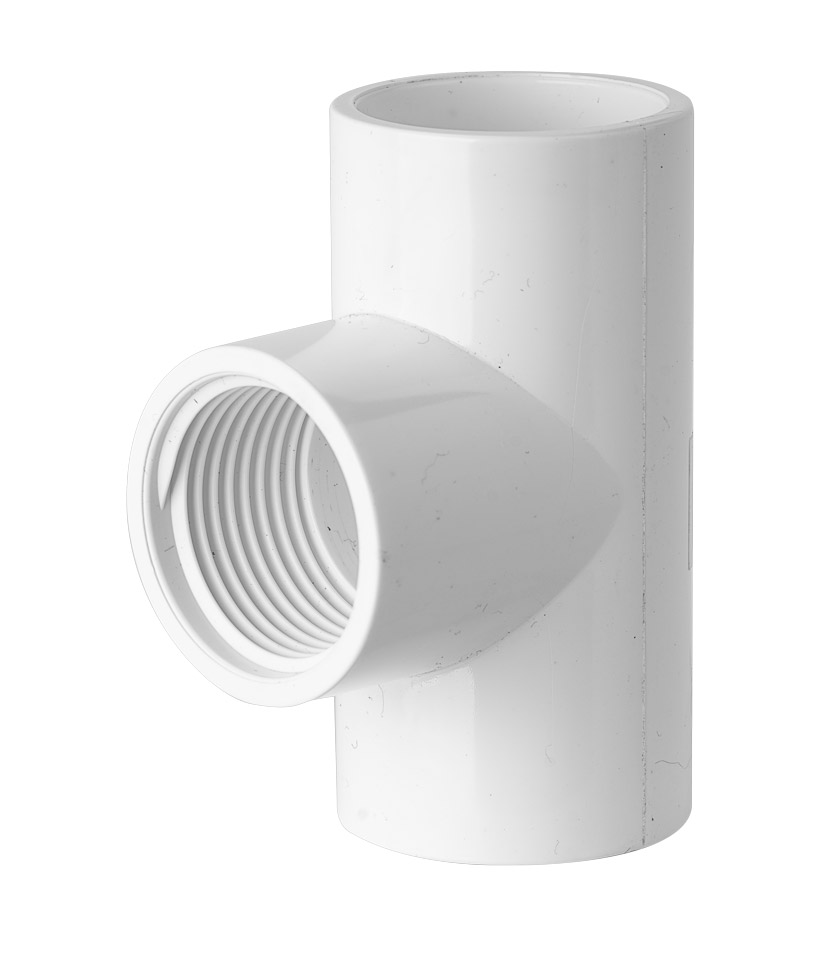

| PVT2525F | 25mm x 1″ | – | 25mm | 0.07kg |
Tech Sheet 32mm
Tech Specs
- Model Name: PVC Pressure Faucet Tee 32mm x 1/2″
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVT3215F | 32mm x 1/2″ | – | 32mm | 0.09kg |
Tech Sheet 40mm
Tech Specs
- Model Name: PVC Pressure Faucet Tee 40mm x 1/2″
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|

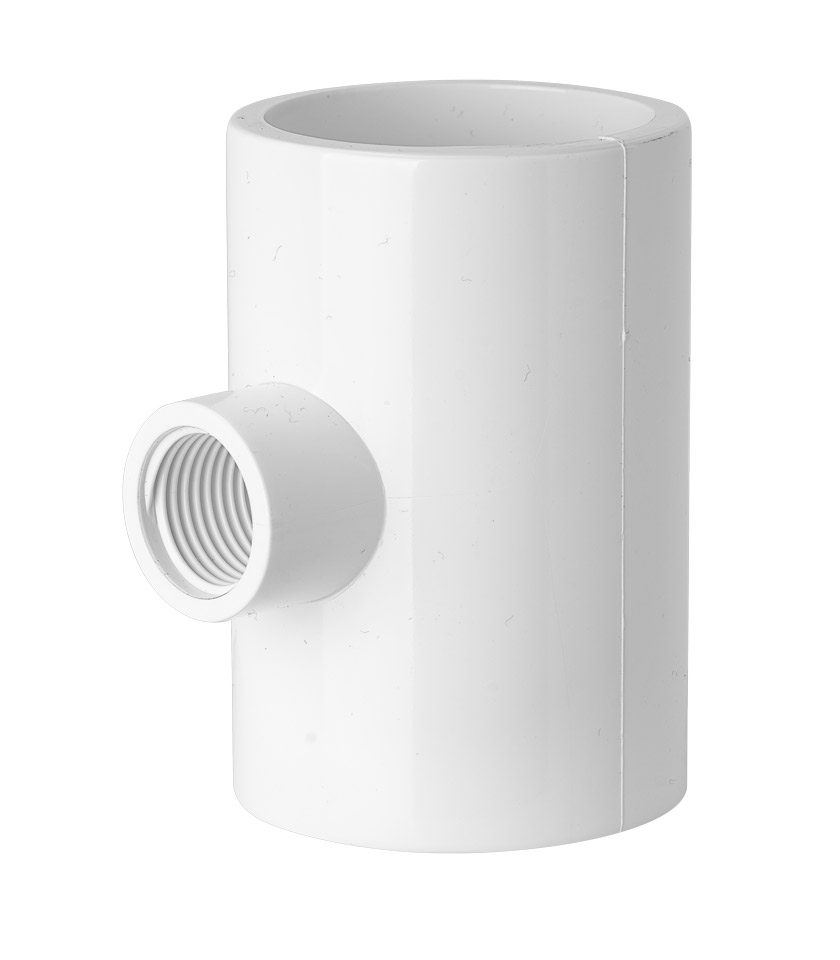

| PVT4015F | 40mm x 1/2″ | – | 40mm | 0.12kg |
| PVT4020F | 40mm x 3/4″ | – | 40mm | 0.21kg |
| PVT4025F | 40mm x 1″ | – | 40mm | 0.21kg |
Tech Sheet 50mm
Tech Specs
- Model Name: PVC Pressure Faucet Tee 50mm x 1/2″
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVT5015F | 50mm x 1/2″ | – | 50mm | 0.29kg |
| PVT5020F | 50mm x 3/4″ | – | 50mm | 0.18kg |
| PVT5025F | 50mm x 1″ | – | 50mm | 0.3kg |
