Additional information
| Weight | N/A |
|---|---|
| Fitting Size | 20mm x 15mm, 25mm x 15mm, 25mm x 20mm, 32mm x 25mm, 40mm x 25mm, 40mm x 32mm, 50mm x 25mm, 50mm x 40mm, 65mm x 50mm, 80mm x 50mm, 100mm x 50mm, 100mm x 80mm, 150mm x 100mm |
PVC Pressure Reducing Bush
Reducing Bush (CAT No.5)
PVB2015 | PVB2515 | PVB2520 | PVB3225 | PVB4025 | PVB4032 | PVB5025 | PVB5040 | PVB6550 | PVB8050 | PVB10050 | PVB10080 | PVB150100
A PVC Reducing Bush is installed into a fitting to allow smaller size pressure pipe to fit into the fitting and join into the irrigation system. Watermark Approved Fittings, manufactured to AS/NZS 1477 Standard.
$0.00
Reviews
| Code | Description | Bag | Box | Pallet | |
|---|---|---|---|---|---|
 | PVB2015 | 20mm x 15mm | 50 | 2500 | 60000 |
 | PVB2515 | 25mm x 15mm | 25 | 1600 | 38400 |
 | PVB2520 | 25mm x 20mm | 25 | 1600 | 38400 |
 | PVB3225 | 32mm x 25mm | 50 | 600 | 14400 |
 | PVB4025 | 40mm x 25mm | 20 | 600 | 14400 |
 | PVB4032 | 40mm x 32mm | 20 | 600 | 14400 |
 | PVB5025 | 50mm x 25mm | 10 | 300 | 7200 |
 | PVB5040 | 50mm x 40mm | 10 | 300 | 7200 |
 | PVB6550 | 65mm x 50mm | - | 96 | - |
 | PVB8050 | 80mm x 50mm | - | 100 | - |
 | PVB10050 | 100mm x 50mm | - | 60 | - |
 | PVB10080 | 100mm x 80mm | - | 60 | - |
 | PVB150100 | 150mm x 100mm | - | 12 | - |
Tech Sheet 20mm
Tech Specs
- Model Name: PVC Pressure Reducing Bush 20mm x 15mm
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB2015 | 20mm x 15mm | – | 20mm | 0.01kg |
Tech Sheet 25mm
Tech Specs
- Model Name: PVC Pressure Reducing Bush 25mm x 20mm
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB2515 | 25mm x 15mm | – | 25mm | 0.02kg |
| PVB2520 | 25mm x 20mm | – | 25mm | 0.01kg |
Tech Sheet 32mm
Tech Specs

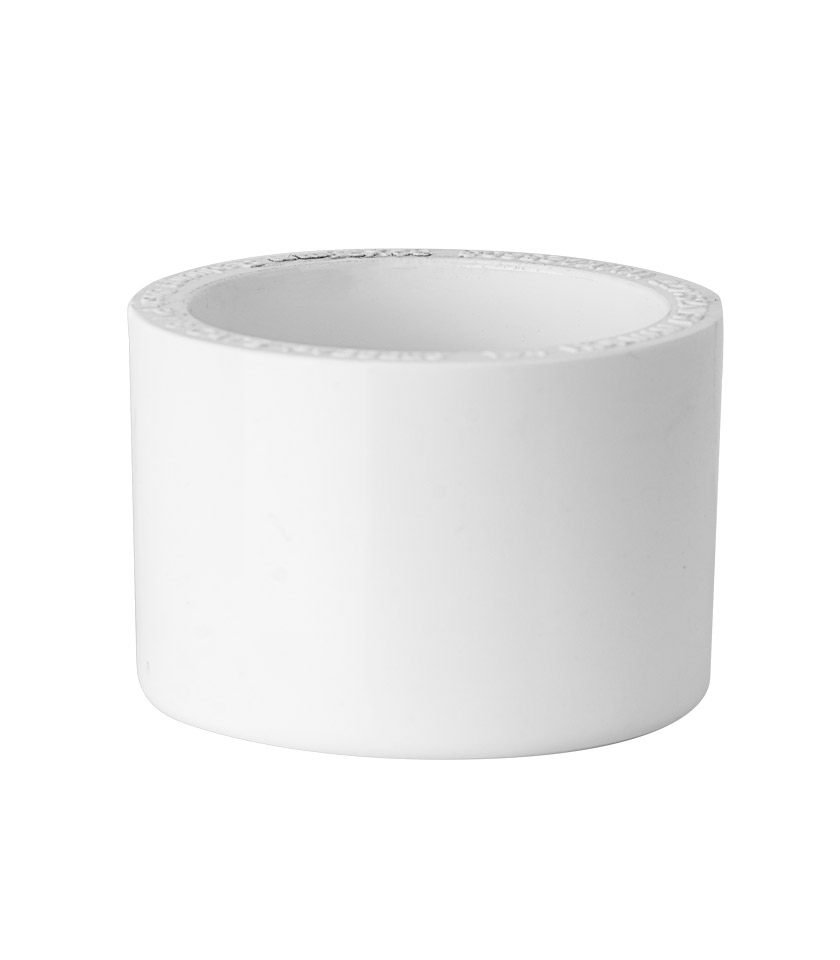

- Model Name: PVC Pressure Reducing Bush 32mm x 25mm
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB3225 | 32mm x 25mm | – | 32mm | 0.02kg |
Tech Sheet 40mm
Tech Specs

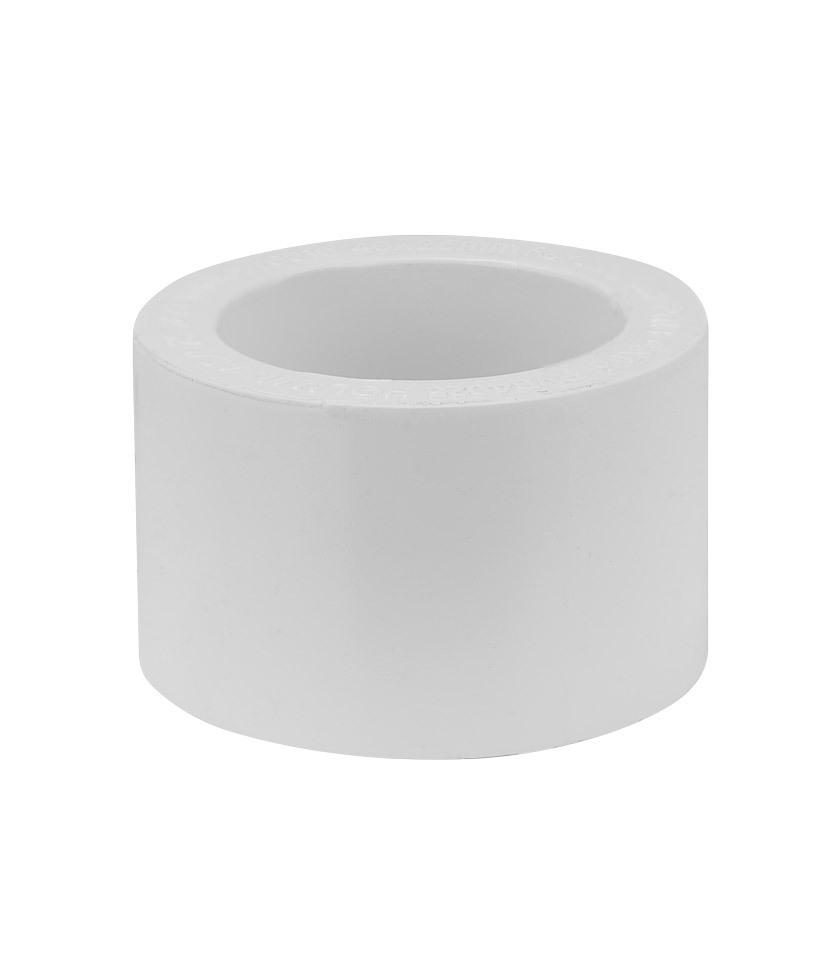

- Model Name: PVC Pressure Reducing Bush 40mm x 25mm
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB4025 | 40mm x 25mm | – | 40mm | 0.04kg |
| PVB4032 | 40mm x 32mm | – | 40mm | 0.03kg |
Tech Sheet 50mm
Tech Specs

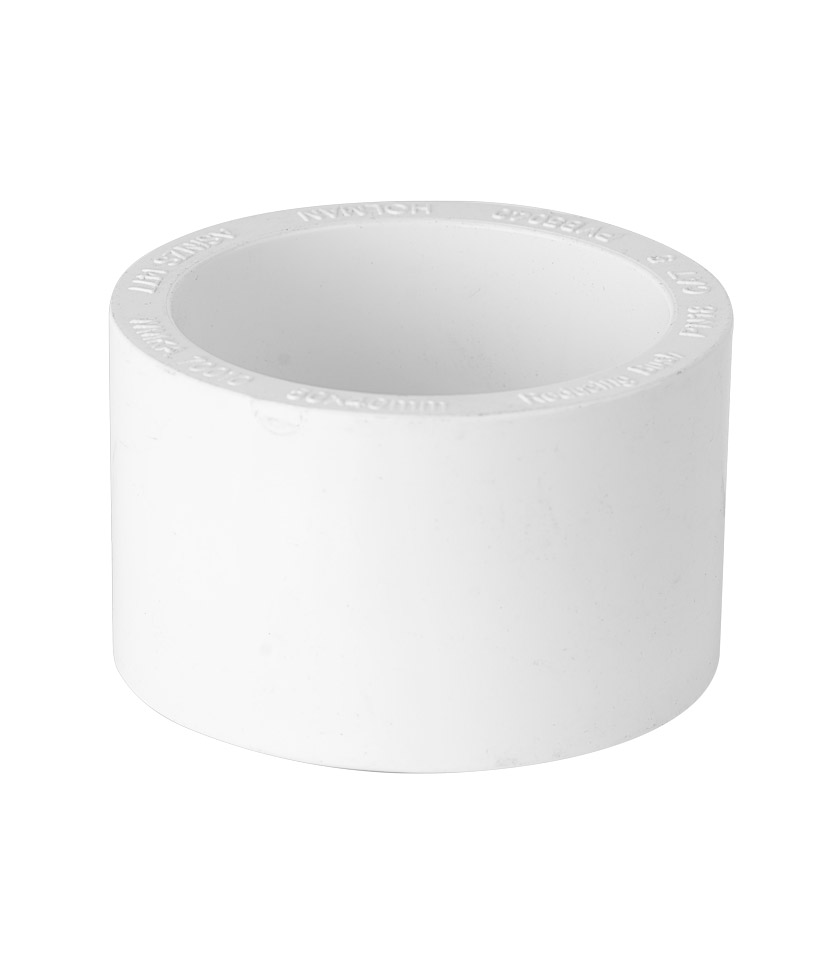

- Model Name: PVC Pressure Reducing Bush 50mm x 25mm
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB5025 | 50mm x 25mm | – | 50mm | 0.07kg |
| PVB5040 | 50mm x 40mm | – | 50mm | 0.06kg |
Tech Sheet 65mm
Tech Specs

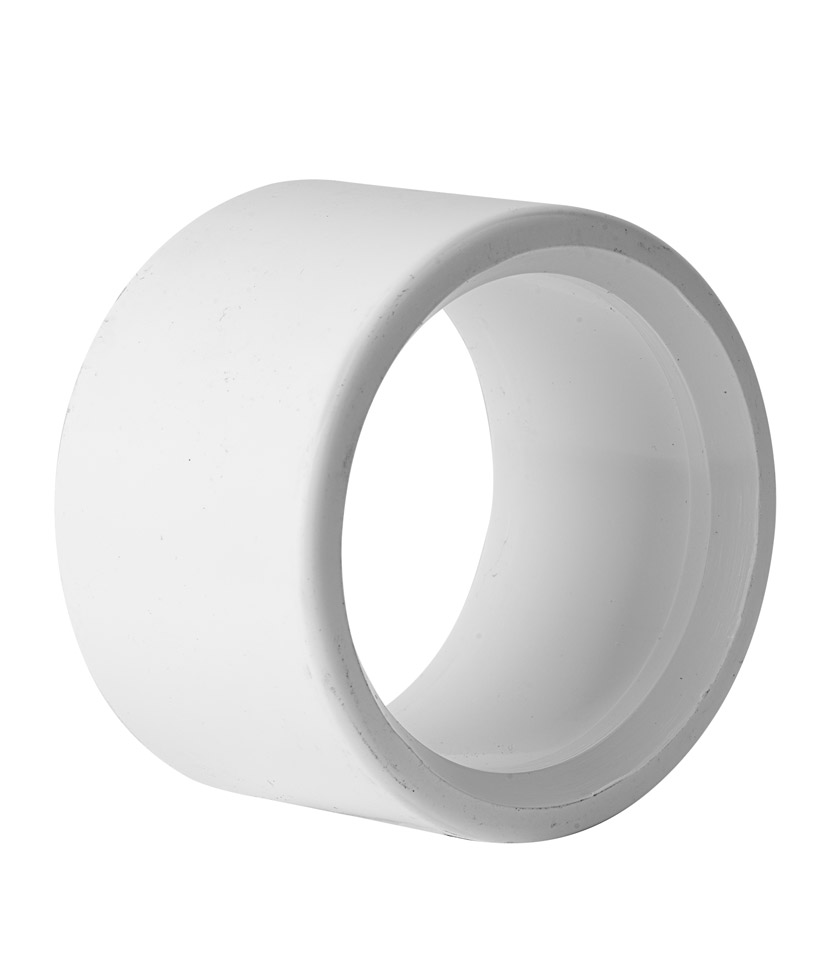

- Model Name: PVC Pressure Reducing Bush 65mm x 50mm
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB6550 | 65mm x 50mm | – | 65mm | 0.11kg |
Tech Sheet 80mm
Tech Specs
- Model Name: PVC Pressure Reducing Bush 80mm x 50mm

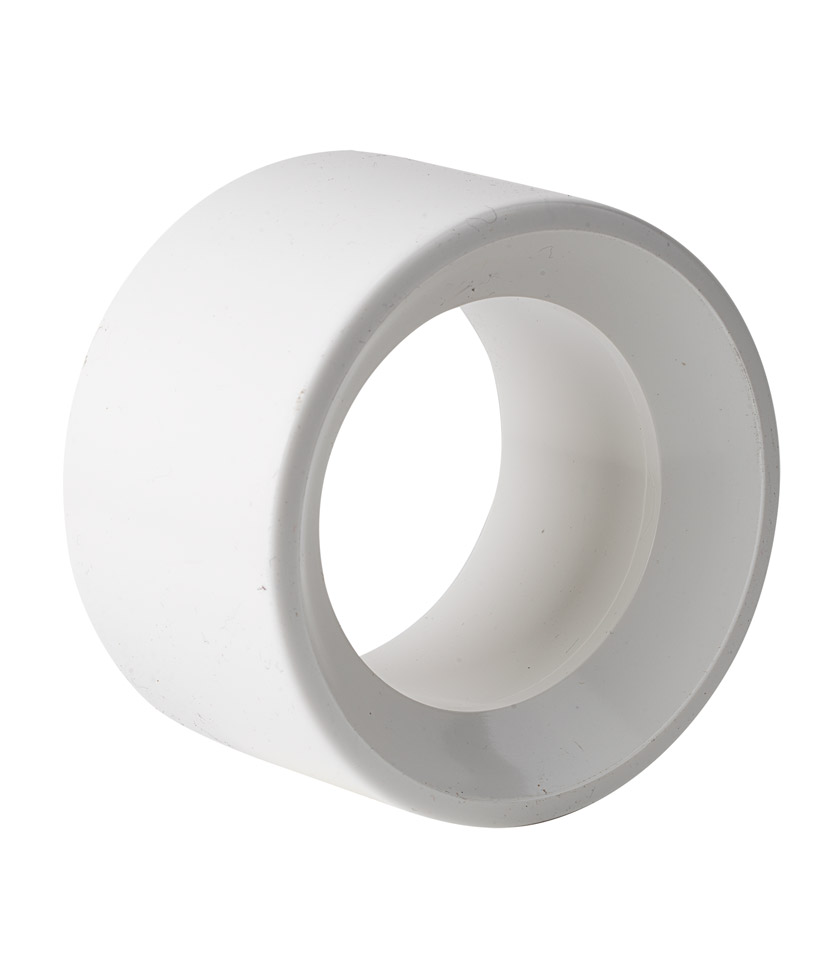

- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB8050 | 80mm x 50mm | – | 80mm | 0.16kg |
Tech Sheet 100mm
Tech Specs

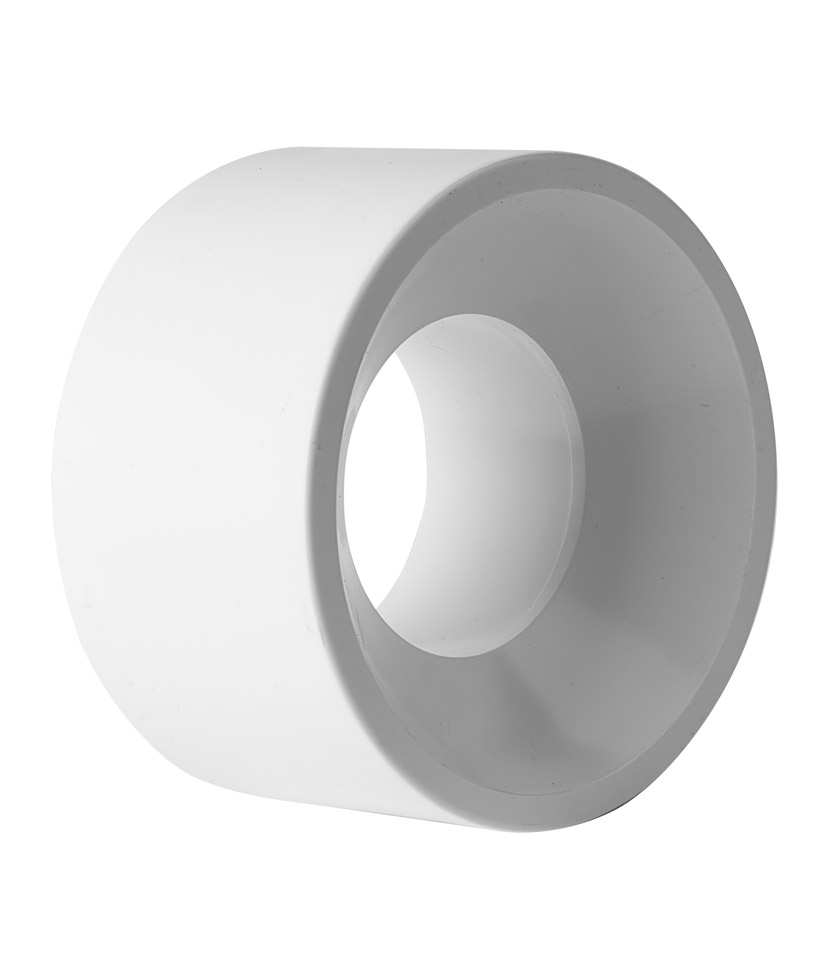

- Model Name: PVC Pressure Reducing Bush 100mm x 50mm
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB10050 | 100mm x 50mm | – | 100mm | 0.34kg |
| PVB10080 | 100mm x 80mm | – | 100mm | 0.37kg |
Tech Sheet 150mm
Tech Specs
- Model Name: PVC Pressure Reducing Bush 150mm x 100mm
- Colour: White
- Material: Poly Vinyl Chloride – PVC
- Watermark Certificate: AS/NZS 1477
| Code | Description | Angle | Size | Weight |
|---|---|---|---|---|
| PVB150100 | 150mm x 100mm | – | 150mm | 0.95kg |
