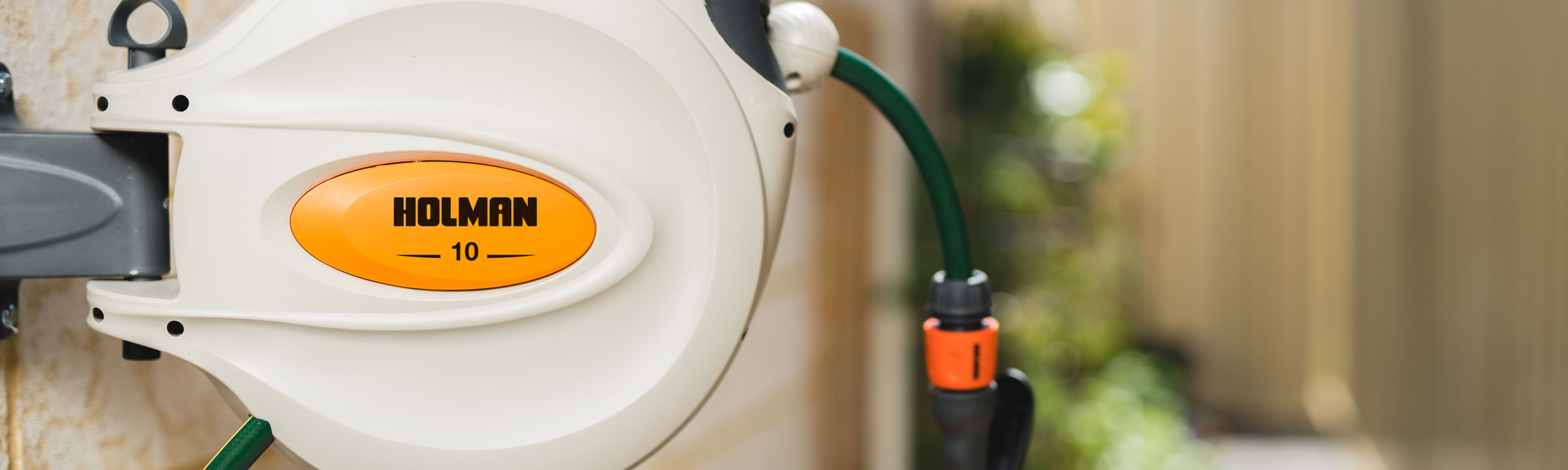

Installing our 10m Retractable Hose Reel

How to Install our 10m Retractable Hose Reel

Our Retractable Hose Reels keep your backyard tidy, protect your hose from the weather and are available in three handy sizes.

7 Reasons why our Retractable Hose Reels are Perfect for your Garden

  • Available in three sizes to suit any garden or balcony, big or small (10m, 20m, 30m)
  • Protects your hose from the harsh Australian sun by being stored away
  • No twisting or kinking with the reel’s automatic layering mechanism
  • Ability to stop the hose at the exact length you need
  • Handy lid allows you to look inside and inspect the hose reel and hose
  • No more tripping hazard with the hose being neatly stored away after each use
  • All parts included – a premium quality hose, 7-function spray gun and fittings required for mounting

Follow these Easy Steps to Install your Retractable Hose Reel

1. Mark out the four drill holes with a pencil.
2. Once you have finished marking, drill the holes using the correct drill bit size. Use a 10mm drill bit for the 20 and 30 metre hose reels and an 8mm drill bit for the 10m.
3. Insert the wall plugs into the holes and tap in with a hammer.
4. Screw in the four included bolts and tighten them with a spanner.
5. Place the hose on the bracket and insert the pin to lock it in place.

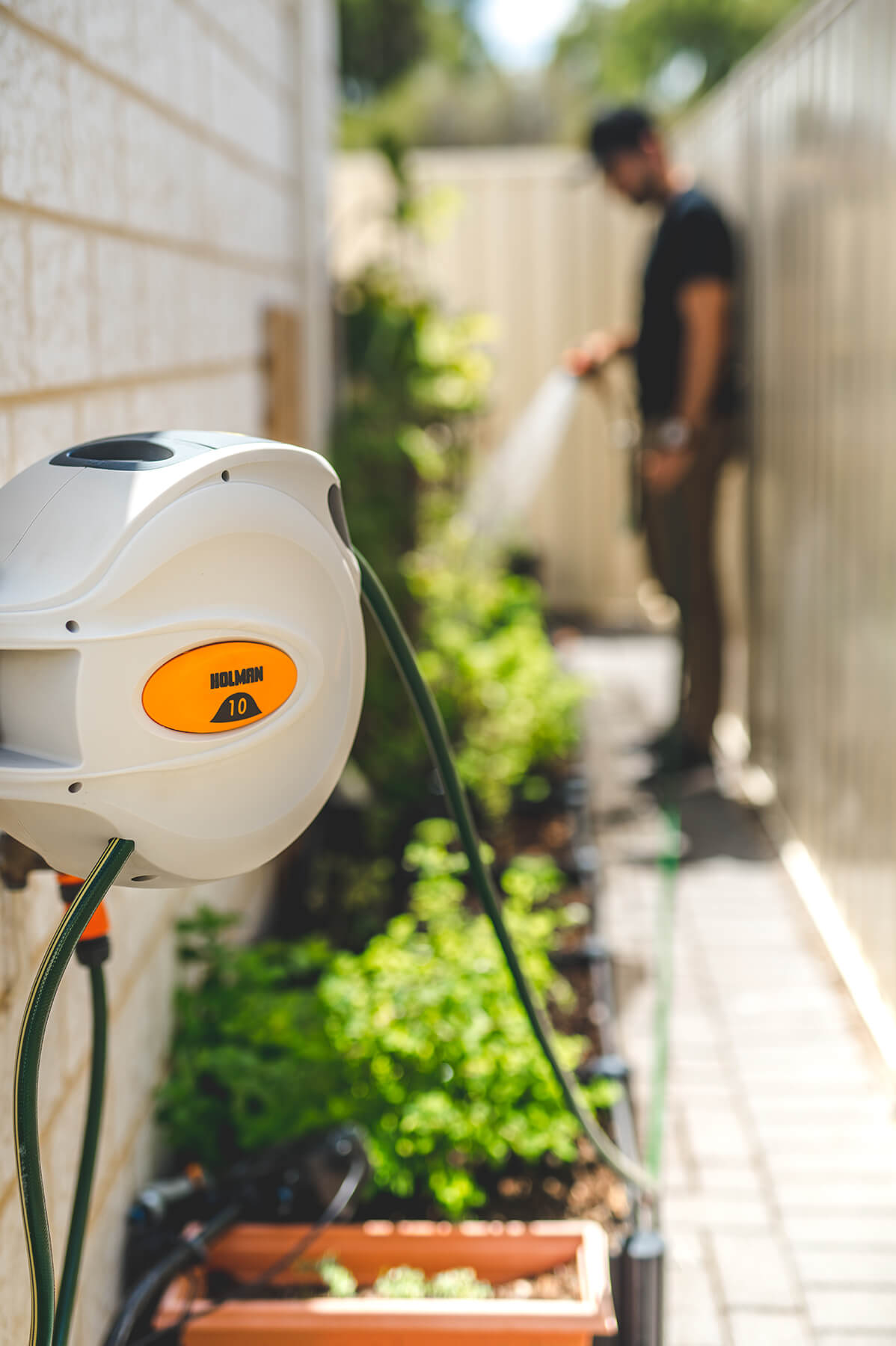

6. When you’re ready to water, pull the hose out to any position and gently tug it to lock it in place.
7. To retract the hose, give it a tug and let it retract into the reel housing.

The Retractable Hose Reel features a removable cover which is handy for inspecting the hose and retracting mechanism.

Troubleshooting the Retractable Hose Reel

Comments (6)

  1. Is it ok to attach Holman Retractable Hose to Hardi Plank weatherboards? If so, in your opinion, best method.
    Thank you

    1. Hi Rita,

      We can only recommend the attachment of our retractable units to a brick or solid wall using the masonry fittings provided. We would strongly urge you to contact your local hardware agent, handyman or builder for exact instructions on mounting to weatherboard. Please feel free to contact us if you do require any further information.

      Cheers,

      Nathan

  2. Is it ok to attach Holman Retractable Hose to Hardi Plank weatherboards? If so, in your opinion, best method.
    Thank you

    1. Hi Rita,

      We can only recommend the attachment of our retractable units to a brick or solid wall using the masonry fittings provided. We would strongly urge you to contact your local hardware agent, handyman or builder for exact instructions on mounting to weatherboard. Please feel free to contact us if you do require any further information.

      Cheers,

      Nathan

  3. Hi,

    Would you be able to confirm the hole dimensions for the wall mount on all 3 models of reel? Trying to replace an existing unit without drilling new holes.

    Thanks.
